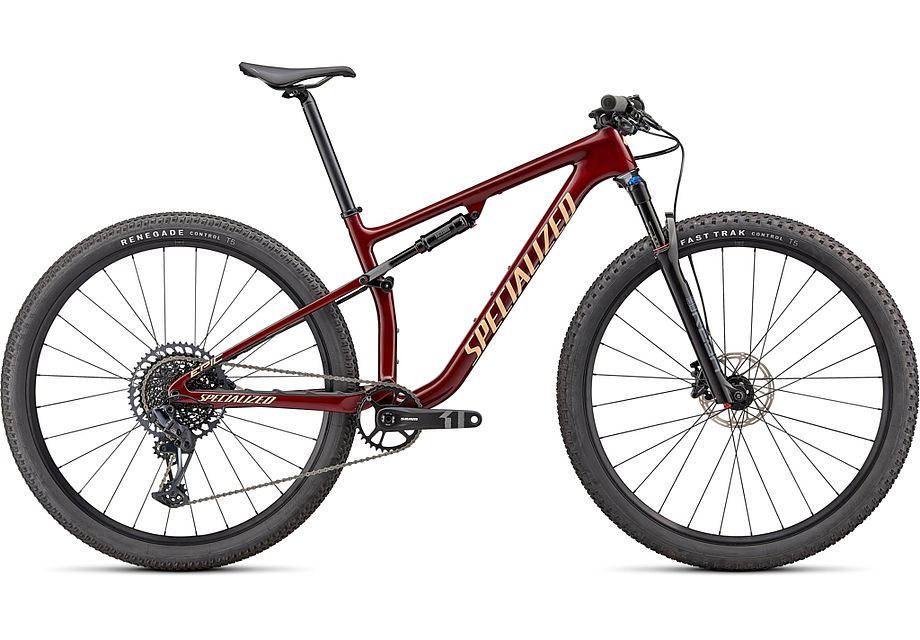

BICI SPECIALIZED EPIC COMP GRANATE 2022
Piensa más Rápido
Estás viendo las bicicletas de XC más rápidas del mundo. Basándonos en el legado de la bicicleta de doble suspensión con más victorias de la historia, las nuevas Epic ofrecen una combinación inigualable de eficiencia de pedaleo, peso ligero y control de conducción.
Ref.: 90322-50
Talla
Especificaciones técnicas
FRAMESET
CUADRO
FACT 11m Full Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm rear spacing, internal cable routing, 100mm of travel
SWAT
SWAT EMT Cage-Mount Tool
ABRAZ. SILLÍN
Specialized Alloy, 34.9mm
Suspension
AMORTIGUADOR
RockShox-Specialized BRAIN, Rx XC Tune, 5 Position Platform Adjust, Rebound Adjust, Integraded Extension, 265x52.5mm
HORQUILLA
RockShox Reba RL, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel
COCKPIT
MANILLAR
Specialized Alloy Minirise, 6.5mm rise, 750mm, 31.8mm clamp
CINTA
Specialized Trail Grips
SILLÍN
Body Geometry Power Sport, steel rails
TIJA DE SILLÍN
Specialized Alloy, Single Bolt, 30.9mm
BRAKES
FRENO DELANTERO
SRAM Level TL, 2-piston caliper, hydraulic disc
FRENO TRASERO
SRAM Level TL, 2-piston caliper, hydraulic disc
DRIVETRAIN
CAMBIO
SRAM GX Eagle, 12-speed
MANDOS DE CAMBIO
SRAM GX Eagle, 12-speed
CASETE
SRAM XG-1275, 12-speed, 10-52t
CADENA
SRAM NX Eagle, 12-speed
PEDALIER
SRAM X1000 Eagle, DUB, 170/175mm 34T
PLATOS
34T
CAJA PEDALIER
SRAM DUB, BSA 73mm, threaded
WHEELS
LLANTAS
Specialized Alloy, Tubeless Ready, 25mm internal width, 28h
BUJE DELANTERO
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 32h
BUJE TRASERO
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
RADIOS
DT Swiss Industry
NEUMÁTICO DEL.
Specialized Fast Trak, Control Casing, T5 Compound, 29x2.35
NEUMÁTICO TRASERO
Specialized Renegade, Control Casing, T5 Compound, 29x2.35
CÁMARAS
Standard, Presta valve
* Especificaciones sujetas a cambios sin previo aviso
Geometría
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 586mm | 591mm | 605mm | 623mm |
| Reach | 415mm | 445mm | 470mm | 495mm |
| Longitud de Pipa | 95mm | 100mm | 115mm | 135mm |
| Ángulo de Pipa | 67.5° | 67.5° | 67.5° | 67.5° |
| Altura Pedalier | 324mm | 324mm | 324mm | 324mm |
| Caída Pedalier | 48mm | 48mm | 48mm | 48mm |
| Avance Horquilla | 106mm | 106mm | 106mm | 106mm |
| Longitud Horquilla | 505mm | 505mm | 505mm | 505mm |
| Avance/Retroceso Horquilla | 44mm | 44mm | 44mm | 44mm |
| Delante Centro | 687mm | 719mm | 750mm | 782mm |
| Longitud de vaina | 433mm | 433mm | 433mm | 433mm |
| Distancia entre ejes | 1116mm | 1148mm | 1179mm | 1211mm |
| Bike Standover Height | 763mm | 766mm | 776mm | 788mm |
| Long. Tubo de Sillín | 400mm | 430mm | 470mm | 520mm |
| Ángulo de Tubo de Sillín | 75.8° | 75.5° | 75.5° | 75.5° |
| Longitud Tubo Superior, Hrz. | 563mm | 598mm | 626mm | 656mm |
